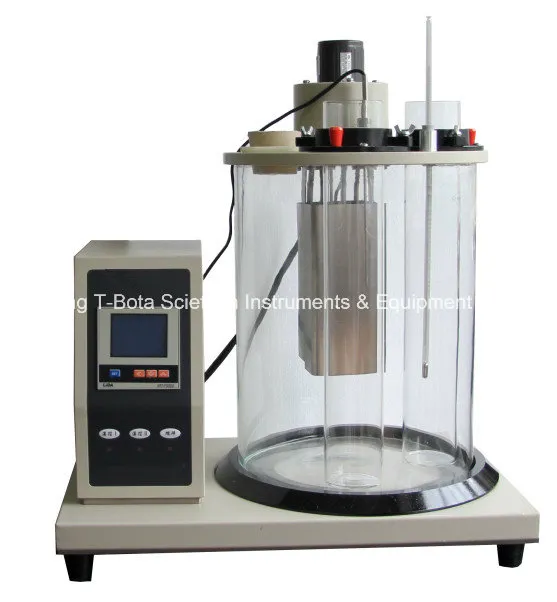

TBT- 1884 Petroleum Products Density Tester

Product Description

TBT-1884 Petroleum Products Density tester
Summary
This instrument is designed and made as per standards GB/T 1884-2000 Crude petroleum and liquid petroleum products - Laboratory determination of density - Hydrometer method and ASTM D1298 Standard Test Method for Density, Relative Density(Specific Gravity),or API Gravity of Crude Petroleum and Liquid Petroleum Products by Hydrometer Method. It is used to determine the density of crude petroleum and liquid petroleum.

I. Main technical features
1. This instrument is a kind of all-in-one machine. The control box adopts humanized design. The control switch adopts light-touch mode. It's structure is simple and compact. Easy to operate.
2. It adopts intelligent LCD temperature controller. The control rate is fast and over-shoot is small. The temperature control can reach ±0.2ºC.
3. It equips a hard glass vessel and electric stirrer. The temperature in vessel is uniform. Easy to observe the sample.

II. Main technical specifications

Power supply	AC(220±10%)V,50Hz
Dimension of constant temperature bath	300mm×340mm
Capacity of cylinder	500ml
Heating power	700W,1000W
Temperature controller:	(1) Range: Ambient to 100ºC (2) Accuracy: ±0.2ºC (3) Sensor: Pt100
Thermometer:	Mercury-in-glass thermometer. Scale division is 0.2ºC.
Dimension:	560mm×380mm×580mm
